Description

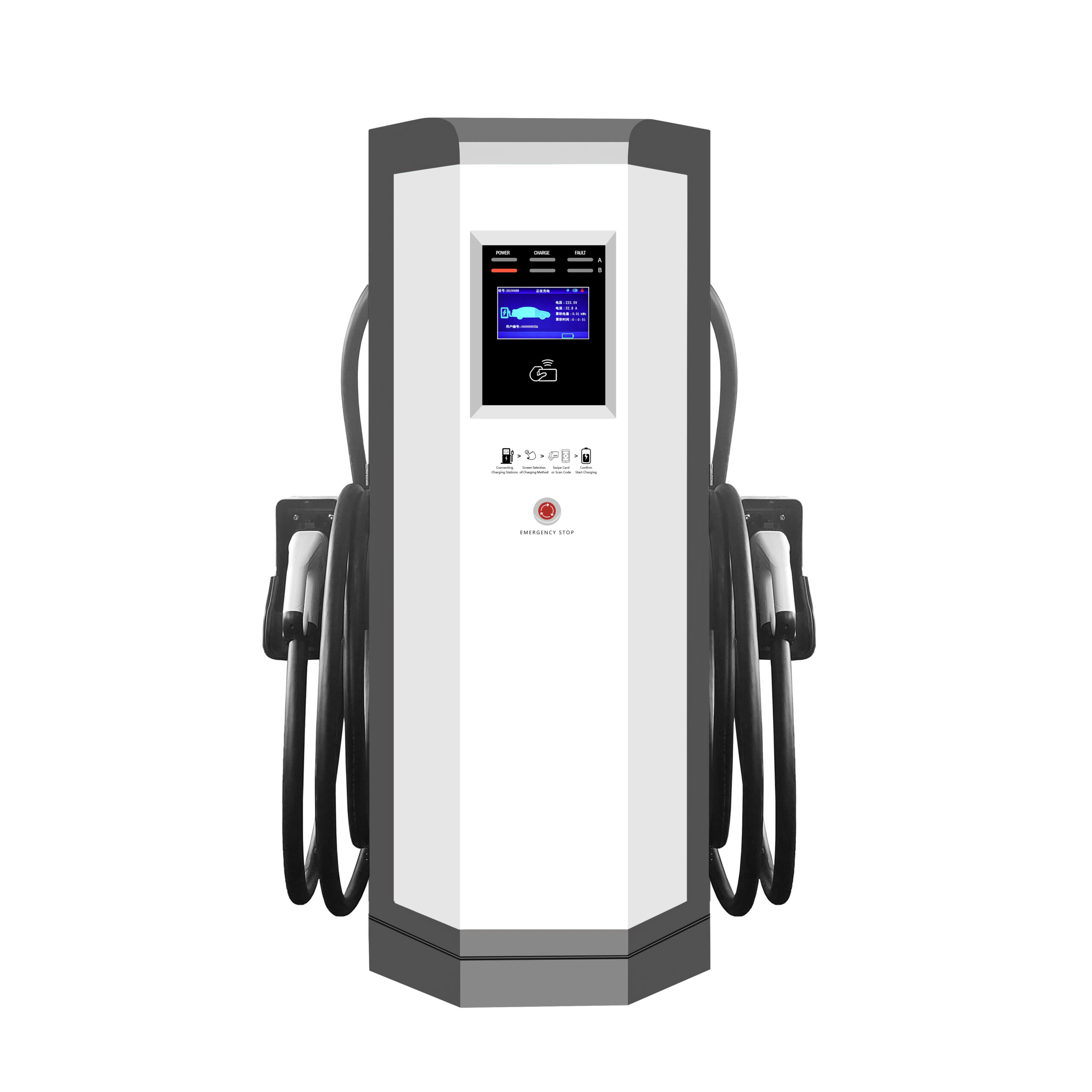

The ChargePro DC Fast Charger – 240 kW Dual Gun is an ultra-fast EV charging solution designed for high-capacity charging infrastructure such as highway charging corridors, public charging networks, and large commercial charging facilities.

This charger enables rapid charging for compatible electric vehicles and supports intelligent charging management systems, remote monitoring, and payment integration. The dual charging connectors allow efficient operation in busy charging stations.

The system is designed for heavy-duty operation with advanced cooling, electrical protection, and durable enclosure construction.

Key Features

• Charging power: 240 kW
• Charging Frequency: 45Hz/65Hz
• Input voltage: 3 Phase AC400V±10%
• Output voltage: 200–1000V DC
• Output current: 0–250A
• Connectors: CCS2 Dual Gun
• Display: 7-inch LCD color display touch screen
• Housing Material: Sheet Metal
• Installation: Floor Stand
• Charging modes: Automatic full charge / Fixed power / Fixed amount / Fixed time
• Payment options: RFID card / Mobile App / QR Code
• Communication Interface: Ethernet / 4G / WIFI / OCPP 1.6J (Optional)
• Efficiency: ≥95%
• Power factor: ≥0.98
• Protection rating: IP54
• Operating temperature: -20°C to +50°C
• Noise control: ≤60 dB
• Dimensions: 615x700x1830mm(LxWxH)
• Cable Length: 5M
• Safety protection:
  • • Charging gun temperature detection
    • Over voltage protection
    • Under voltage protection
    • Overload protection
    • Short circuit protection
    • Grounding protection
    • Over temperature protection
    • Low temperature protection
    • Insulation monitoring protection
    • Reverse polarity protection
    • Lightning protection
    • Emergency stop protection
    • Leakage protection
