Below is the brief information on various models, respective frequency range and gain. Contact us for more information and details of your requirements. Our team will be happy to assist with updated specifications and models.

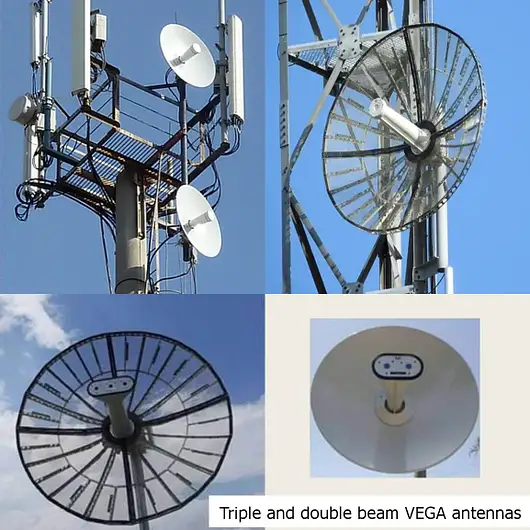

VEGA
Specialized High Gain Antenna
VEGA Antenna | Specialised Very High Gain Antenna Solution for targeted cellular coverage
Established in 2003, Comarcom Ltd has a deep understanding of both the cellular technology and cellular marketplace allowing it to offer a niche one-of-a-kind RAN planning and optimisation tool.
These antennas are a revolutionary coverage enhancement product. They are unique yet compatible with all cellular RAN frequencies including 4G LTE, 5G, 5G fixed wireless and legacy technologies.

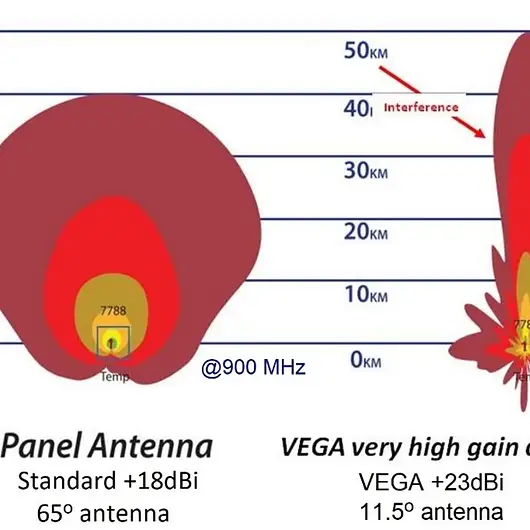

They concentrate your signal, (just like a spotlight) into a powerful, narrow focused spot beam providing high quality, reliable service where the customers actually need it and at distances up to 50% greater than the common high gain panel antennas.
With less power in the back and side lobes, these very narrow beam and high gain antenna enhances the coverage and improves interferences spatial filtration.
VEGA antennas do not compete with or replace common sector panel antennas. They provide the community of RAN network planners and optimizers with a new, unique tool especially designed for difficult cellular radio access networks scenarios, especially long range rural cellular coverage.
Salient use-cases and applications can be briefed as below
Enhancement of BTS coverage (3G, LTE, 5G, fixed wireless) because of higher gain
Improves cell enhancer solutions performance making it an ideal solution for regional areas and towns
Ideal for long highways, bridges and rail track coverage because of narrow beamwidth and higher gains
Narrow beam high gain dish antennas are best for GSM-R and LTE-R networks because of low interference compared to standard panel antennas
Plays an important role in maritime and offshore coverage
Increases coverage and reduces drop calls in remote high-rise buildings
Low-cost churn reduction
Improves QoS and ROI
Low CapEx and OpEx compared to adding sites
| Antenna Model | Frequency Band | Gain [dBi] | -3dB Beam Width |
|---|---|---|---|
| CW-12-WB3 | 610-960 MHz | +18 to +22.5 +/-0.5 | 14 to 10 +/-0.5 |
| CP-32-WB3 (Triple Beam) | 1710-2690 MHz | +27.5 to +29 +/-0.5 | 5.2 to 4.5 +/-0.5 |
| CMP-22-WB3 (Dual Beam) | 1710-2690 MHz | +22 to +25 +/-0.5 | 10.8 to 7.4 +/-0.5 |
| CMW-12-WB3 | 3300-3950 MHz | +23.7 to +26.3 +/- 0.5 | 6 to 5 +/-0.5° |
| CMP-12-WB3 | 1710-2690 MHz | +22.5 +/- 1 | 10.8 to 8.4 +/-1° |
| CP-12-WB3 | 1710-2690 MHz | +27 to 28.3 +/-0.5 | 5.8 to 4.2 +/-1° |
| CC-12-WB3 | 690-960 MHz | +21 to 22.6 +/-0.75 | 13 to 10.5 +/-1° |
CUSTOMER STORY
Vodafone NZ and 2 Degrees
Our customers Vodafone NZ and 2 Degrees mobile have used VEGA Specialised High Gain Antennas to address locations with specialised or difficult radio access scenarios to provide quality mobile service to their customers.
Services Used
Network Design and Optimization
Network Performance Management
Engineering Services
